Details

• General Feature

  Product Type

  NVMe™ SSD

  Family Line

  980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD

  Capacity

  1TB

  Interface

  PCIe^® 4.0

  Compatibility

  PC & Playstation^® 5

• Performance

  Encryption

  AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)

• Type

  Interface

  PCIe Gen 4.0 x4, NVMe 1.3c

  Read/Write Speeds

  7,000/5,000MB/s

  Usage Application

  Client PCs, Game Consoles

• Storage

  Capacity

  1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• Key Features

  Sequential Read Speed

  Up to 7,000 MB/s * Performance may vary based on system hardware & configuration

  Sequential Write Speed

  Up to 5,000 MB/s * Performance may vary based on system hardware & configuration

  Compatibility

  980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.

  Cache Memory

  Samsung 1GB Low Power DDR4 SDRAM

  Trim Support

  Supported

  S.M.A.R.T. Support

  Supported

  GC (Garbage Collection)

  Auto Garbage Collection Algorithm

  WWN Support

  Not supported

  Device Sleep Mode Support

  Yes

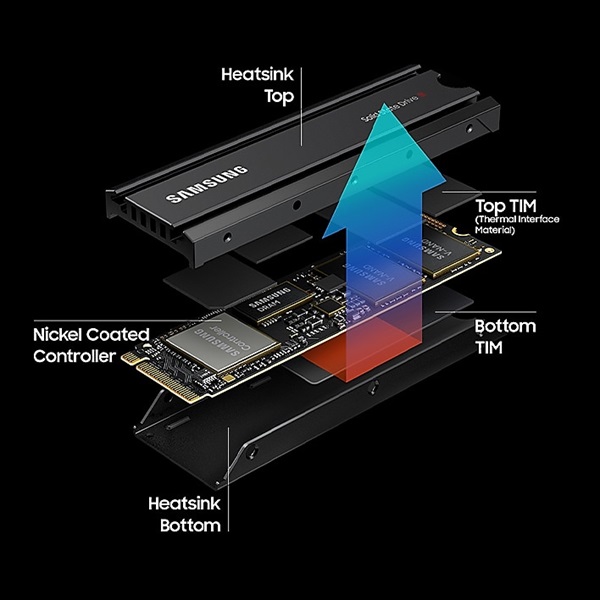

  Thermal protection

  Heatsink

• General

  Average Power Consumption (system level)

  *Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

  Power consumption (Idle)

  Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration

  Reliability (MTBF)

  1.5 Million Hours Reliability (MTBF)

• Environmental Specs

  Shock

  1,500 G & 0.5 ms (Half sine)

• Form Factor

  Product

  M.2 (2280) with Heatsink complying PCI-SIG® D8 standard

• Dimensions (W x H x D)

  Product

  24 x 80 x 8.6 mm (with heatsink)

• Weight

  Product

  Max 30.5g
